A simple example
This notebooks provides a basic pythonradex example. We will consider the non-LTE radiative transfer of CO without dust effects.
[1]:
from pythonradex import radiative_transfer, helpers
from scipy import constants
import matplotlib.pyplot as plt
import numpy as np
Initialise the source. We choose a static slab for the geometry and a rectangular line profile with a FWHM of 1 km/s.
[2]:
datafilepath = "./co.dat" # file downloaded from EMAA or LAMDA database
geometry = "static slab"
line_profile_type = "rectangular"
width_v = 1 * constants.kilo
source = radiative_transfer.Source(
datafilepath=datafilepath,
geometry=geometry,
line_profile_type=line_profile_type,
width_v=width_v,
)
Next, we need to set the parameters of the source. Note that pythonradex uses SI units.
[3]:
# N is the CO column density in m-2. Note that for spherical geometries, the input optical depth corresponds
# to the diameter of the sphere.
N = 1e16 / constants.centi**2
Tkin = 120 # kinetic temperature in [K]
# collider densities in m-3:
collider_densities = {
"para-H2": 2e2 / constants.centi**3,
"ortho-H2": 6e2 / constants.centi**3,
}
# external background: CMB at redshift 0. For no background, simply set ext_background=0.
# You can also provide your own function for the background. It should take an array
# of frequencies as input and return the radiation field at those frequencies in units
# of W/m2/Hz/sr
ext_background = helpers.generate_CMB_background(z=0)
# no dust in this example:
T_dust = 0
tau_dust = 0
source.update_parameters(
N=N,
Tkin=Tkin,
collider_densities=collider_densities,
ext_background=ext_background,
T_dust=T_dust,
tau_dust=tau_dust,
)
Now, we can solve the radiative transfer
[4]:
source.solve_radiative_transfer()
We will now inspect the results, focussing on the 2-1 transition. As this transitions is listed 2nd in the LAMDA file, its index is 1 (the index starts with 0).
Let’s first check the optical depth:
[5]:
index_21 = 1
print(
f"optical depth at line center: {source.tau_nu0_individual_transitions[index_21]:.3g}"
)
optical depth at line center: 1.37
Turns out the 2-1 transition is optically thick. Next, let’s check the excitation temperature:
[6]:
print(f"Tex: {source.Tex[index_21]:.3g} K")
Tex: 21 K
We are clearly in the non-LTE regime: \(T_\mathrm{ex}\) is much smaller than \(T_\mathrm{kin}\). This is expected, because the critical density of CO 2-1 is roughly \(10^5\) cm\(^{-3}\), which is significanlty higher than our input collider density.
Next, let us check the frequency-integrated flux and intensity. For the flux, let us assume the source has an area of 1 au\(^2\) at a distance of 100 pc.
[7]:
area = (1 * constants.au) ** 2
distance = 100 * constants.parsec
solid_angle = area / distance**2
# we can get the fluxes of several transitions by providing a list of indices,
# or of a single transition, as here:
transitions = index_21
flux_21 = source.frequency_integrated_emission(
output_type="flux", solid_angle=solid_angle, transitions=transitions
)
print(f"flux of CO 2-1: {flux_21:.3g} W/m2")
intensity_21 = source.frequency_integrated_emission(
output_type="intensity", transitions=transitions
)
print(f"intensity of CO 2-1: {intensity_21:.3g} W/m2/sr")
flux of CO 2-1: 3.5e-25 W/m2
intensity of CO 2-1: 1.49e-10 W/m2/sr
We can also get the emission (specific intensity, flux density or brightness temperature) and the optical depth as functions of frequency (although in this particular case, that’s not very interesting because the line profile is rectangular. Note that for spherical geometries, the output optical depth is along the diameter of the sphere.
[8]:
# define the grid of frequencies for which we want the emission spectrum
# and optical depth:
v = np.linspace(-width_v, width_v, 20)
nu0_21 = source.emitting_molecule.nu0[index_21] # rest frequency of CO 2-1
nu = nu0_21 * (1 - v / constants.c)
specific_intensity = source.spectrum(output_type="specific intensity", nu=nu)
flux_density = source.spectrum(
output_type="flux density", solid_angle=solid_angle, nu=nu
)
RJ_brightness_temp = source.spectrum(output_type="Rayleigh-Jeans", nu=nu)
Planck_brightness_temp = source.spectrum(output_type="Planck", nu=nu)
tau = source.tau(nu=nu)
fig, axes = plt.subplots(ncols=2, nrows=2)
fig.suptitle("CO 2-1 emission spectrum")
axes[0, 0].plot(v / constants.kilo, specific_intensity)
axes[0, 0].set_ylabel(r"specific intensity [W/m$^2$/Hz/sr]")
axes[0, 1].plot(v / constants.kilo, flux_density)
axes[0, 1].set_ylabel(r"flux density [W/m$^2$/Hz]")
for ax in (axes[0, 0], axes[0, 1]):
ax.yaxis.set_major_formatter(plt.ScalarFormatter(useMathText=True))
axes[1, 0].plot(v / constants.kilo, RJ_brightness_temp)
axes[1, 0].set_ylabel(r"R-J brightness T [K]")
axes[1, 1].plot(v / constants.kilo, Planck_brightness_temp)
axes[1, 1].set_ylabel(r"Planck brightness T [K]")
for ax in axes.ravel():
ax.set_xlabel("velocity [km/s]")
fig.tight_layout()

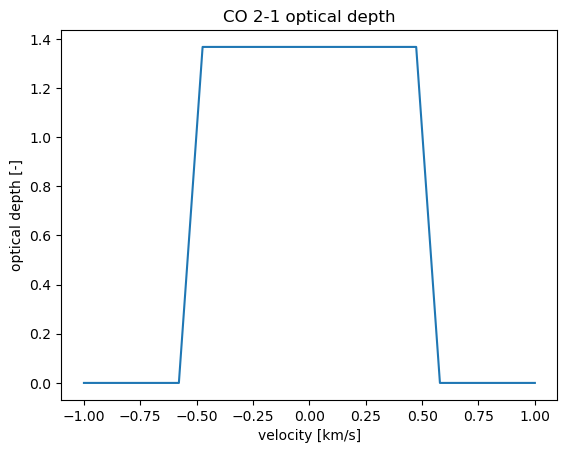

_, ax = plt.subplots()
ax.set_title("CO 2-1 optical depth")
ax.plot(v / constants.kilo, tau)
ax.set_xlabel("velocity [km/s]")
ax.set_ylabel(r"optical depth [-]")
[8]:
Text(0, 0.5, 'optical depth [-]')
We can also get the emission at the line center (i.e. rest frequency):
[9]:
output_types = ("specific intensity", "flux density", "Rayleigh-Jeans", "Planck")
units = ("W/m2/Hz/sr", "W/m2/Hz", "K", "K")
for output_type, unit in zip(output_types, units):
emission = source.emission_at_line_center(
output_type=output_type,
transitions=transitions,
solid_angle=(solid_angle if output_type == "flux density" else None),
)
print(f"{output_type} at line center: {emission:.3g} {unit}")
specific intensity at line center: 1.94e-16 W/m2/Hz/sr
flux density at line center: 4.55e-31 W/m2/Hz
Rayleigh-Jeans at line center: 11.9 K
Planck at line center: 16.8 K
Finally, we can also get an overview of the basic results of our calculation for all transitions by invoking the print_results function. For each transitions, it lists the indices of the upper and lower level, the rest frequency, the excitation temperature, the fractional population of the lower and upper level, and the optical depth at the rest frequency (again, for spherical geometries, the output optical depth is along the diameter).
[10]:
source.print_results()
up low nu0 [GHz] T_ex [K] poplow popup tau_nu0
1 0 115.271202 54.06 0.122168 0.330851 0.179753
2 1 230.538000 20.96 0.330851 0.325295 1.36716
3 2 345.795990 16.85 0.325295 0.170079 1.84728
4 3 461.040768 13.61 0.170079 0.0430084 1.17724
5 4 576.267931 13.48 0.0430084 0.00675366 0.313361
6 5 691.473076 18.68 0.00675366 0.00135013 0.0459527
7 6 806.651806 26.13 0.00135013 0.000354136 0.00841327
8 7 921.799700 31.90 0.000354136 0.000100267 0.00211573
9 8 1036.912393 36.30 0.000100267 2.84454e-05 0.000589387
10 9 1151.985452 40.42 2.84454e-05 8.00666e-06 0.000165313
11 10 1267.014486 44.23 8.00666e-06 2.21778e-06 4.62374e-05
12 11 1381.995105 48.04 2.21778e-06 6.0604e-07 1.27169e-05
13 12 1496.922909 53.37 6.0604e-07 1.70363e-07 3.40436e-06
14 13 1611.793518 54.07 1.70363e-07 4.37565e-08 9.76354e-07
15 14 1726.602506 54.01 4.37565e-08 1.00868e-08 2.56285e-07
16 15 1841.345506 60.01 1.00868e-08 2.4624e-09 5.75507e-08
17 16 1956.018139 59.56 2.4624e-09 5.40066e-10 1.43305e-08
18 17 2070.615993 61.36 5.40066e-10 1.13035e-10 3.14905e-09
19 18 2185.134680 64.09 1.13035e-10 2.31959e-11 6.55619e-10
20 19 2299.569842 66.06 2.31959e-11 4.58761e-12 1.3431e-10
21 20 2413.917113 66.83 4.58761e-12 8.49916e-13 2.66699e-11
22 21 2528.172060 68.20 8.49916e-13 1.50114e-13 4.93447e-12
23 22 2642.330346 69.74 1.50114e-13 2.5447e-14 8.69318e-13
24 23 2756.387584 71.28 2.5447e-14 4.14695e-15 1.4678e-13
25 24 2870.339407 72.41 4.14695e-15 6.43988e-16 2.38394e-14
26 25 2984.181455 73.23 6.43988e-16 9.4677e-17 3.69002e-15
27 26 3097.909361 74.39 9.4677e-17 1.33145e-17 5.39341e-16
28 27 3211.518751 75.54 1.33145e-17 1.79379e-18 7.53791e-17
29 28 3325.005283 77.06 1.79379e-18 2.34113e-19 1.00606e-17
30 29 3438.364611 78.75 2.34113e-19 2.97771e-20 1.29937e-18
31 30 3551.592361 78.83 2.97771e-20 3.53848e-21 1.6438e-19
32 31 3664.684180 79.92 3.53848e-21 4.04268e-22 1.93415e-20
33 32 3777.635728 80.45 4.04268e-22 4.37664e-23 2.18937e-21
34 33 3890.442717 81.81 4.37664e-23 4.59997e-24 2.33956e-22
35 34 4003.100788 82.52 4.59997e-24 4.61407e-25 2.4302e-23
36 35 4115.605585 83.78 4.61407e-25 4.49054e-26 2.40296e-24
37 36 4227.952774 84.51 4.49054e-26 4.18164e-27 2.30788e-25
38 37 4340.138112 84.55 4.18164e-27 3.65529e-28 2.12197e-26
39 38 4452.157122 85.89 3.65529e-28 3.11626e-29 1.82338e-27
40 39 4564.005640 83.79 3.11626e-29 2.34022e-30 1.54037e-28
If we want to make another calculation with updated parameters, we can use the update_parameters function again. For example, let’s change the kinetic temperature while leaving the other parameters at their old values.
[11]:
new_Tkin = 30
source.update_parameters(Tkin=new_Tkin)
source.solve_radiative_transfer()
print(f"Tex: {source.Tex[index_21]:.3g} K")
Tex: 13.2 K
IMPORTANT: If you want to run pythonradex for a grid of parameters, do not initialise a new ``Source`` instance for each set of parameters! Setting up a new Source is computationally expensive, so the grid search will take much more time than needed. Instead, use the update_parameters method. Another notebook with an example grid search is available in the documentation.
By the way, of course, with a high collider density, we recover LTE:
[12]:
LTE_collider_densities = {
"para-H2": 1e6 / constants.centi**3,
"ortho-H2": 3e6 / constants.centi**3,
}
source.update_parameters(collider_densities=LTE_collider_densities)
source.solve_radiative_transfer()
print(f"Tex of 2-1: {source.Tex[index_21]:.5g} K (Tkin = {new_Tkin} K)")
Tex of 2-1: 29.989 K (Tkin = 30 K)
We indeed see that now LTE is established as \(T_\mathrm{ex}\approx T_\mathrm{kin}\). Of course, if it is known that LTE applies, using pythonradex to solve the radiative transfer is not necessary because the level population is known and the radiative transfer can be solved directly.
Note that for convenience, the LTE level population (i.e. Boltzmann distribution) can be directly retrieved as follows (see also the notebook explaining how to read LAMDA files):
[13]:
# the fractional population of each level of the CO molecule
source.emitting_molecule.Boltzmann_level_population(T=new_Tkin)
[13]:
array([8.93976938e-02, 2.23029118e-01, 2.57064475e-01, 2.06977272e-01,
1.27278184e-01, 6.18780569e-02, 2.41922867e-02, 7.68060381e-03,
1.99215058e-03, 4.23856103e-04, 7.41874485e-05, 1.07044890e-05,
1.27532253e-06, 1.25614314e-07, 1.02391207e-08, 6.91270612e-10,
3.86815058e-11, 1.79511697e-12, 6.91258932e-14, 2.20981693e-15,
5.86710310e-17, 1.29422945e-18, 2.37289568e-20, 3.61720522e-22,
4.58606540e-24, 4.83740681e-26, 4.24643017e-28, 3.10314390e-30,
1.88830787e-32, 9.57116290e-35, 4.04203100e-37, 1.42265745e-39,
4.17436752e-42, 1.02140043e-44, 2.08467998e-47, 3.55016042e-50,
5.04602306e-53, 5.98779422e-56, 5.93383624e-59, 4.91229733e-62,
3.39817892e-65])
[ ]:
